Foshan Hong Zhong Machiney Co., Ltd.


Sheet Coil Slitting Line

$38,000.00$88,000.00

Categories , Tags , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Sheet Coil Slitting Line

Product Details

Model Number HZF-650*2-SC-001
Cutting Speed(m/min) 100000 – 120000 mm
Coil Weight (T) 6 T
Drive AC
Material Thickness(mm) 0.2 – 2 mm
No. of Slitting Lines 5 – 20
Type full automatic

Product Description

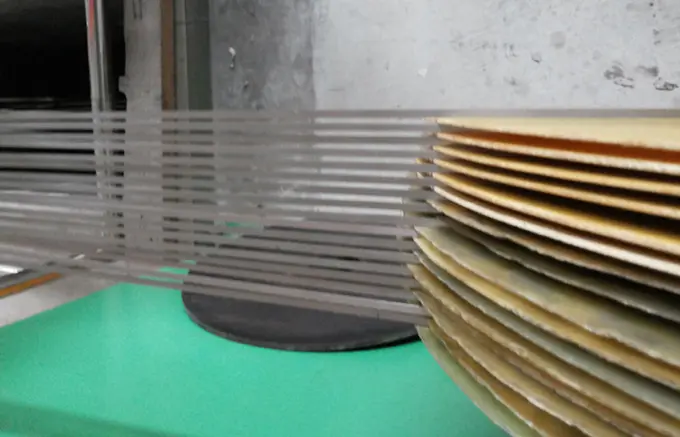

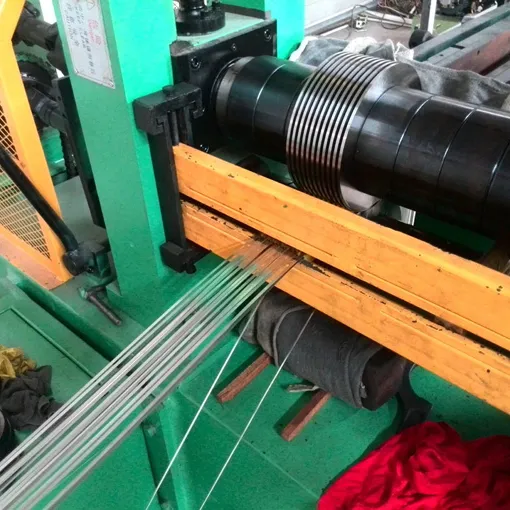

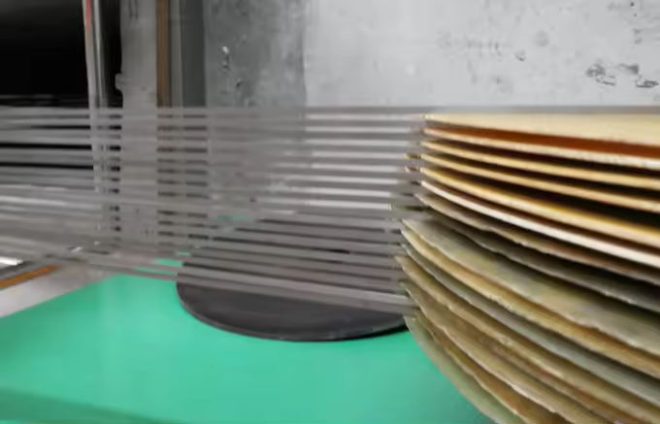

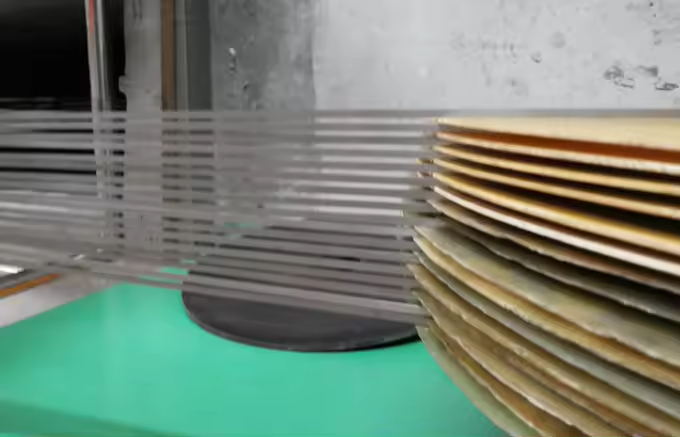

Sheet Coil Slitting Line: Slitting lines are longitudinal cutting jumbo metal coils into more narrow coils. Usually slitting lines are consisted of four main parts: decoiler, slitter, tensioner and recoiler. Metal strip is fed from decoiler, through slitter for longitudinal cutting by two circular cutting blades, and then re-coiled in slitted mults on the recoiler through tensioner.

Our slitting lines can be designed and made based on stainless steel, carbon steel, silicon steel, GI, PPGI, brass, copper and aluminum; width range: 300~2000mm, thickness range: 0.2~16mm, weight range: 3~40tons

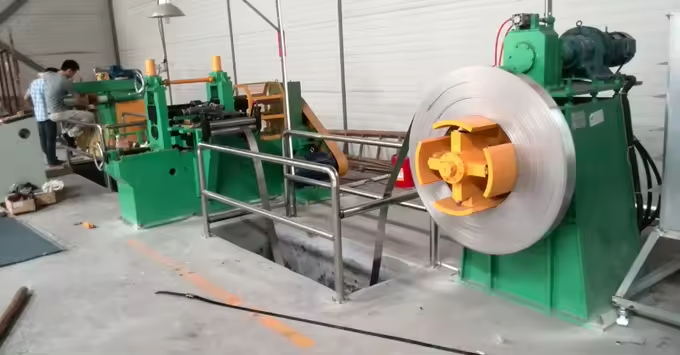

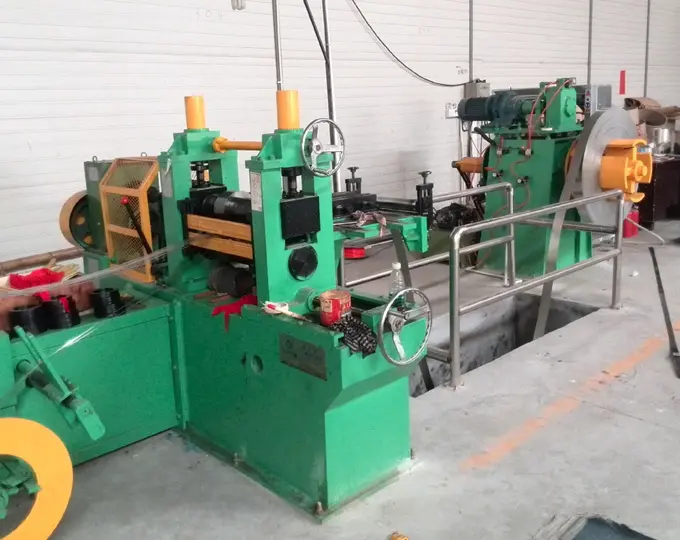

Cold Rolled Galvanized Steel Coil Slitting Line MachineCold Rolled Galvanized Steel Coil Slitting Line Machine

Sheet Coil Slitting Line

Sheet Coil Slitting Line

Sheet Coil Slitting Line

Application

Stainless steel (All series) Carbon steel(HR or CR)
Colored coil (PPGI) Galvanized coil(GI)
Aluminum, Copper and Brass Silicon steel

Flow Chart of Slitting Lines:

Loading coils→decoiling→ pinching, leveling, and shearing→ looping→ guiding → slitting → rewinding scraps → looping → tension → recoiling → unloading baby coils → packing

Advantage
