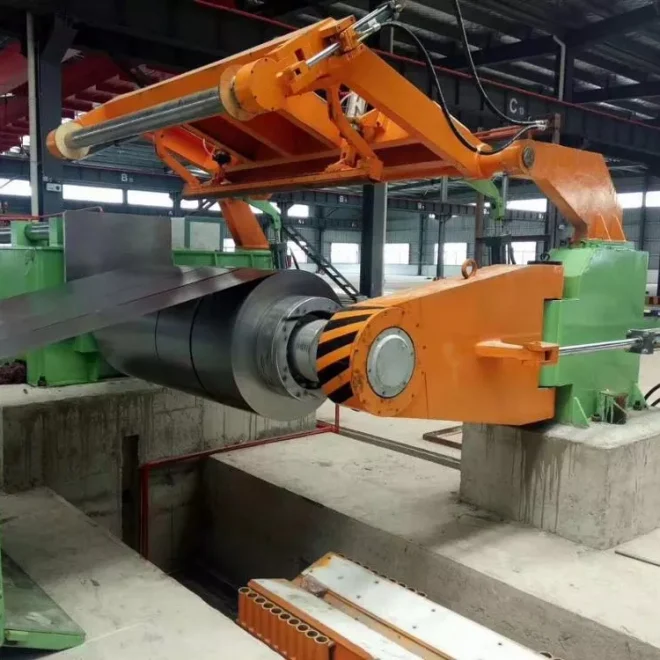

Hydraulic Decoiler Machine for Slitting Line 1600mm
Product Details
| Model Number | HZ-SJ-1600×3-006 |
| Coil Weight | 5-25Ton |
| Thickness | 0.3-3mm |
| Monthly Production | 6000-2000Tons |
| Material Cutting | SS, HR, CR, GAL, etc |
| Coil Width | 1500mm |
| Drive | AC |
Product Description
Metal coil slitting lines: Slitting lines are longitudinal cutting jumbo metal coils into more narrow coils. Usually slitting lines are consisted of four main parts: decoiler, slitter, tensioner and recoiler. Metal strip is fed from decoiler, through slitter for longitudinal cutting by two circular cutting blades, and then re-coiled in slitted mults on the recoiler through tensioner.
Our slitting lines can be designed and made based on stainless steel, carbon steel, silicon steel, GI, PPGI, brass, copper and aluminum; width range: 300~2000mm, thickness range: 0.2~16mm, weight range: 3~40tons
Application
| Stainless steel (All series) | Carbon steel(HR or CR) |
| Colored coil (PPGI) | Galvanized coil(GI) |
| Aluminum, Copper and Brass | Silicon steel |

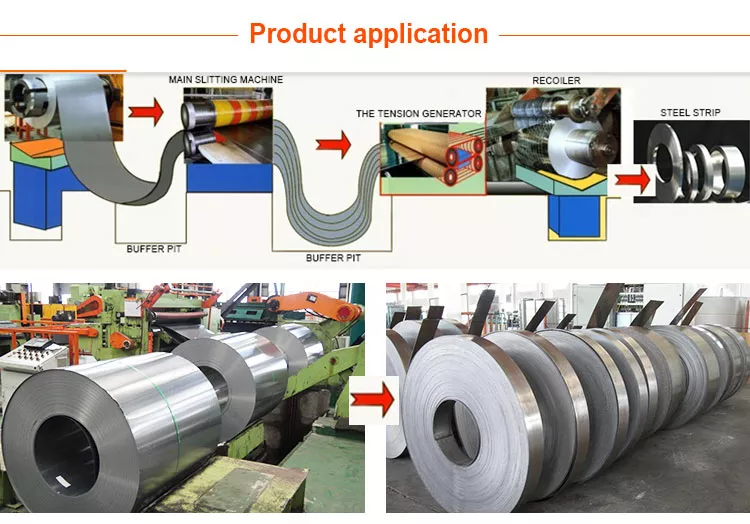

Flow Chart of Slitting Lines:
Loading coils→decoiling→ pinching, leveling, and shearing→ looping→ guiding → slitting → rewinding scraps → looping → tension → recoiling → unloading baby coils → packing
Advantage
Delivery Time
a) Delivery time is 60-180 working days based on different machines
b) ODM 60-150 days after all info confirmed.
c) Depends on order quantity on hands
d) According to real production situation, appointment time of delivery.
