High Speed Fly Shearing Cutting Machine
Product Details
| Model Number | HZFP-850*3-SS-008 |
| Cutting Width (mm) | 300 – 10000 mm |
| Material Thickness(mm) | 0.3 – 3 mm |
| Cutting Speed(m/min) | 10 – 80 m/min |
| Coil Weight (T) | 12 |
Other attributes
|
Video outgoing-inspection
|
Provided |
|
Machinery Test Report
|
Provided |
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Core Components
|
|
Leveling Precision(±mm/m)
|
0.5 ±mm/m
|
|
Place of Origin
|
Guangdong, China
|
|
Condition
|
New
|
|
Weight
|
48
|
|
Warranty
|
1 year
|
|
Applicable Industries
|
Construction works , Building Material Shops, Manufacturing Plant
|
|
Showroom Location
|
Viet Nam, Philippines, Brazil, Indonesia, India, UAE, Ukraine
|
|
Brand Name
|
HZFP-850*3-SS-008
|
|
Voltage
|
customized
|
|
Rated Power
|
not fixed
|
|
Dimension(L*W*H)
|
not fixed
|
|
Coil raw material
|
CR, HR, SS, GAL, CARBON, COPPER
|
|
Coil width
|
200-800mm
|
|
coil weight
|
8-15 Ton
|
|
control system
|
Siemens/ABB
|
|
sheet length
|
300-3000mm
|
|
machine color
|
Orange
|
|
cutting mode
|
fly cut
|
|
design from
|
Taiwan
|
|
Quality Guarantee
|
1 year
|
|
installation
|
seller offer installation
|
Product Description

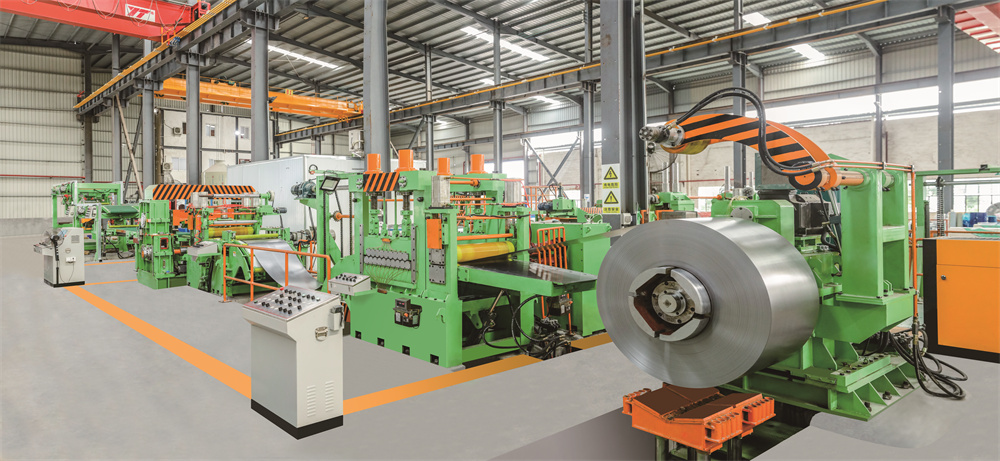

80m/min flying shear cut to length machine used for decoiling coil, leveling sheet then cutting sheet to required dimensions as per PLC order, then stacking sheets in pallet. it is widely used in steel plate, it is widely used in sheet business, punching, auto parts, coil processing, fittings, etc industries. it contains the mechnical parts, hydraulic part, electric part, pneumatic part and lubraicate part. Our advantage as below:
1, Technical team from Taiwan, designers have more than 20 years experience, It can help customers to find best quality solution
2, Quality Control team from Taiwan, They use Taiwan quality standard, that’s why we are No.1 in our industrial
3, Professional as we only produce slitting line and cut to length line. We pay all time for slitting line and cut to length line Research and Design, So we can get improve day by day
4, Skilled installation team to keep sure customer satisfy with their requirements.
80m/min flying shear cut to length machine introduction
1, Raw material specification
| 1, Coil width: 200-800mm | 2, raw material: SS, GAL, COPPER | 3, Coil weight: 8-15T |
| 4, Coil ID: 508/610MM | 5, Line speed: 60m/min | 6, Control system: Siemens/ABB |
| 7, Drive: AC or DC | 8, Machine color: orange | 9, monthly production ability: 1800-3000 T |
2, Machine composition
| 1, Coil loading car | 2, hydro decoiler | 3, Pinch roller, leveler | 4, loop bridge#1 |
| 5, Guider | 6, NC length measure | 7, hydraulic shear | 8, belt conveyor |
| 9, auto lift stacker | 10, Lubricate, pneumatic | 11, hydraulic system | 12, electric system |
3, Details picture and description for each unit
(1) Coil loading car with saddle
Used to loading coil to decoiler mandrel, leveling working in rails, vertical lift power from cylinder, v type saddle

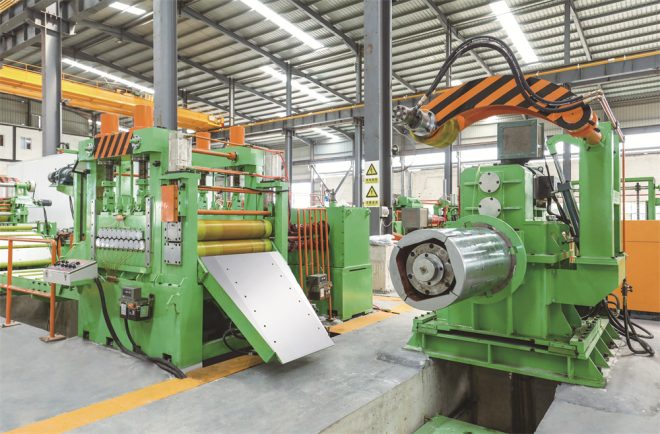

(2) hydraulic decoiler
Used to hold the coil, then open coil, feeding coil to next step, expansion and contractive by hydrualic power through wedge
(3) Pinch roller, leveler
Pinch roller used to pinch sheet to loop bridge, drive from motor power

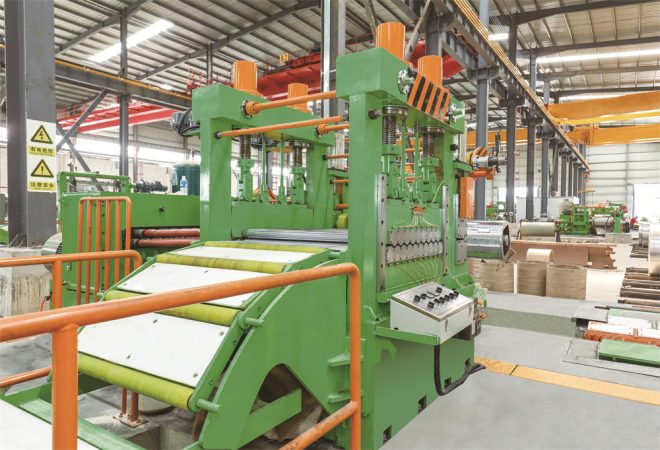

(4) Fine leveler with 6 hi
this adopts best quality in 19 rollers 6 HI leveler, to keep sheet in top flatness
(5) Loop bridge#1
Used to storage the enough coil to keep line working in best condition, also help to coodinate with each parts speed micro different, have sensor inside the pit to adjust each parts working speed in same

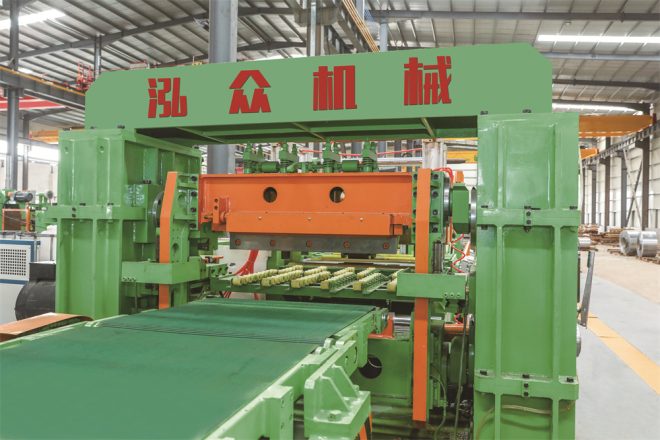

(6) fly shear
Used toshear the sheet according to PLC set data, it has two mode, from upper to down, and down to upper cutting, driven by motor or cylinder, speed can reach 80m/min
(7) Belt conveyor (two sets)
used to conveying sheets to stacker, the belt is durable

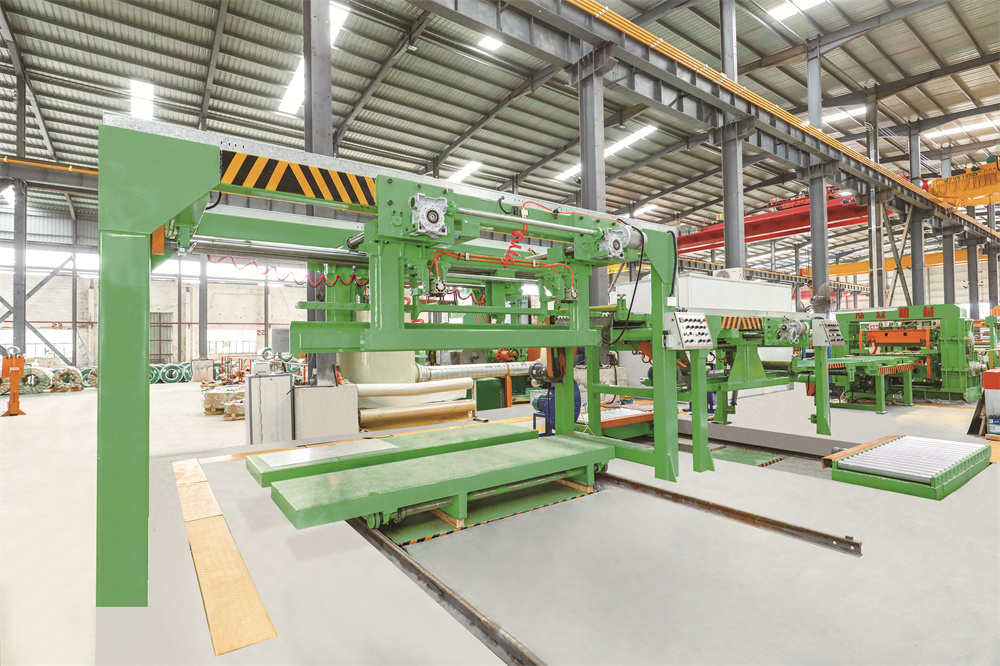

(8) auto lift stacker (two sets)
Used to stack the sheets to pallets, the power from motor and pneumatic system
under the stacker has move out roller table system, mostly have 2 sets, it has left& right out system, also has rear side out sistem. as per customer factory requirements
(11) hydraulic system
Used to offer hydraulic power for all hydraulic unit
(12) Pneumatic system
Used to offer pneumatic power for decoiler, recoiler etc other unit
(13) Lubricate system
Used to lubricate all required area, to make it working smoothly, some parts should be greasing manually
(14) Electric system
Used to control full line working condition, it has screen display, PLC, and button control together
