Galvanized Steel Coil Silicon Steel Slitting Line
Product Details
| Model Number | HZF-1850*3-GS-008 |
| Cutting Width (mm) | 300 – 1800 mm |
| No. of Slitting Lines | 10 – 30 |
| Rated Power | 380KW |
| Coil Weight | 5-25 T |
| Thickness | 0.3-3.0mm |
| Type | full automatic |
| Cutting Speed(m/min) | 100000 – 200000 mm |
| Voltage | 440/380/220V |
| Coil Width | 1800mm |
| Drive | AC |
Product Description

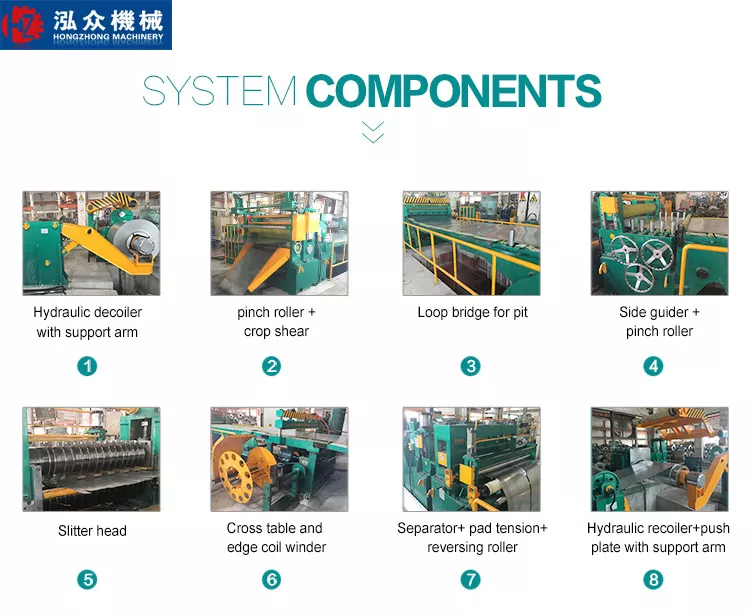

Silicon Steel Slitting Line: Slitting lines are longitudinal cutting jumbo metal coils into more narrow coils. Usually slitting lines are consisted of four main parts: decoiler, slitter, tensioner and recoiler. Metal strip is fed from decoiler, through slitter for longitudinal cutting by two circular cutting blades, and then re-coiled in slitted mults on the recoiler through tensioner.

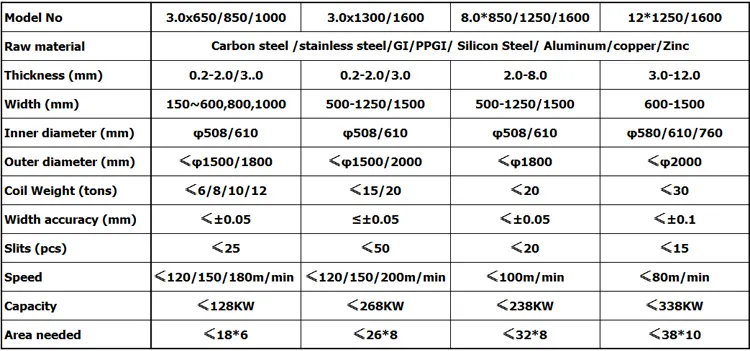

Our slitting lines can be designed and made based on stainless steel, carbon steel, silicon steel, GI, PPGI, brass, copper and aluminum; width range: 300~2000mm, thickness range: 0.2~16mm, weight range: 3~40tons
Application
| Stainless steel (All series) | Carbon steel(HR or CR) |
| Colored coil (PPGI) | Galvanized coil(GI) |
| Aluminum, Copper and Brass | Silicon steel |

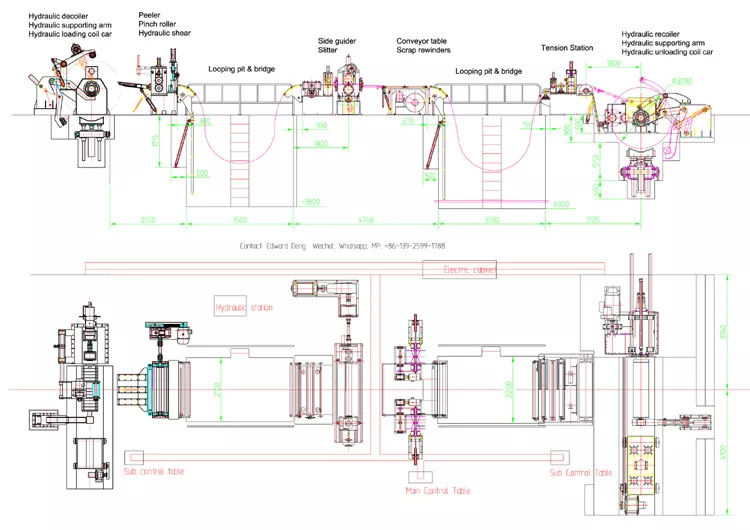

Flow Chart of Slitting Lines:
Loading coils→decoiling→ pinching, leveling, and shearing→ looping→ guiding → slitting → rewinding scraps → looping → tension → recoiling → unloading baby coils → packing

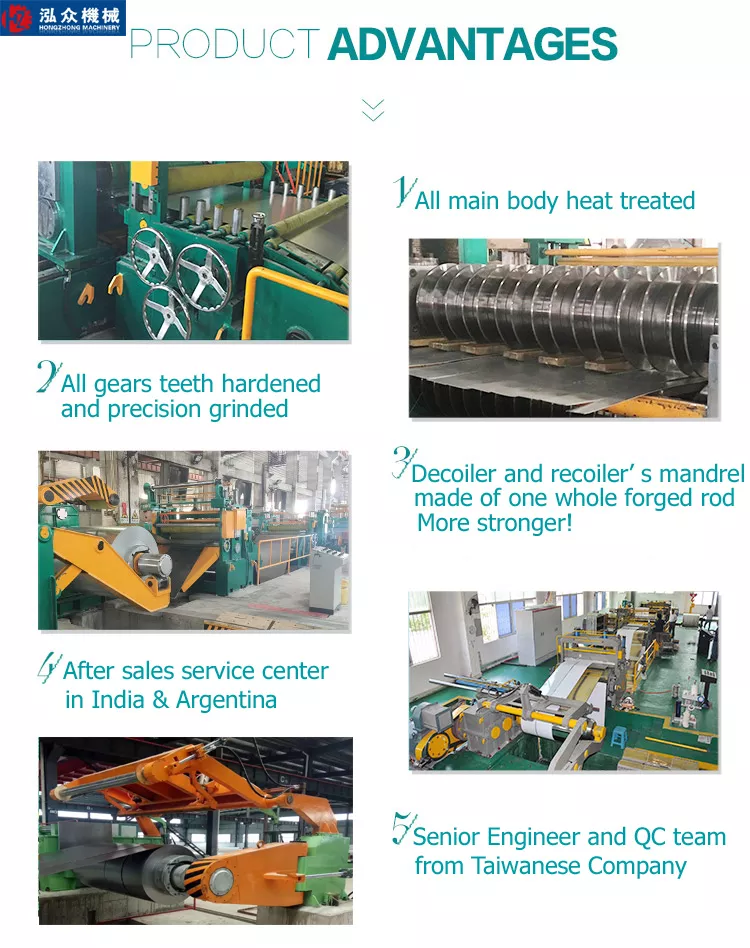

Advantage
