Decoiling Straightening Cutting Machine
Product Details
| Model Number | HZP-850*3-CH-002 |
| Dimension(L*W*H) | not fixed |
| Rated Power | not fixed |
| Coil Weight | 12Ton |
| Coil Width | 300-800mm |
| Voltage | customized |
| Sheet Length | 500-3000mm |
| Cutting Mode | hydraulic cut or pneumatic cut |
Product Description
decoiling straightening cutting machine is widely used for sheet fabrication, sheet dealer, electric products, decorate area, punching area etc. this production line controlled by PLC, operator setting data in touch screen, then machine working as per setting data. it has high cutting accuracy, high speed advantages. also our cut to length line adopts TAIWAN design. stronger structurer, higher quality, longer life.
1, Raw material specification
| 1, Coil width: 500-1600mm | 2, raw material: SS, GAL, COPPER | 3, Coil weight: 8-25 T |
| 4, Coil ID: 508MM | 5, Line speed: 60m/min | 6, Control system: Siemens/ABB |
| 7, Drive: AC or DC | 8, Machine color: blue | 9, monthly production ability: 800-2000 T |
2, Cut to length line composition
| 1, Coil loading car | 2, hydro decoiler | 3, Leveler (shear) | 4, loop bridge#1 |
| 5, Guider& NC length measure | 6, hydro shear | 7, belt conveyor | 8, stacker |
| 9, lift table | 10, move out roller table | 11, hydraulic system | 12, electric system |

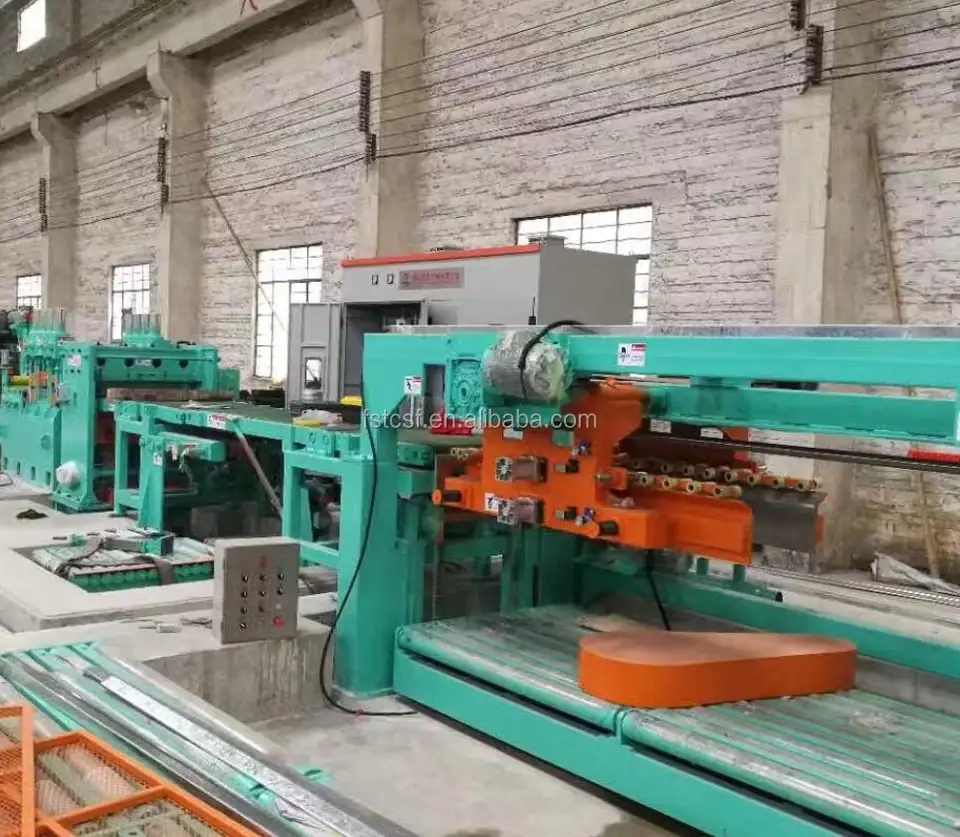

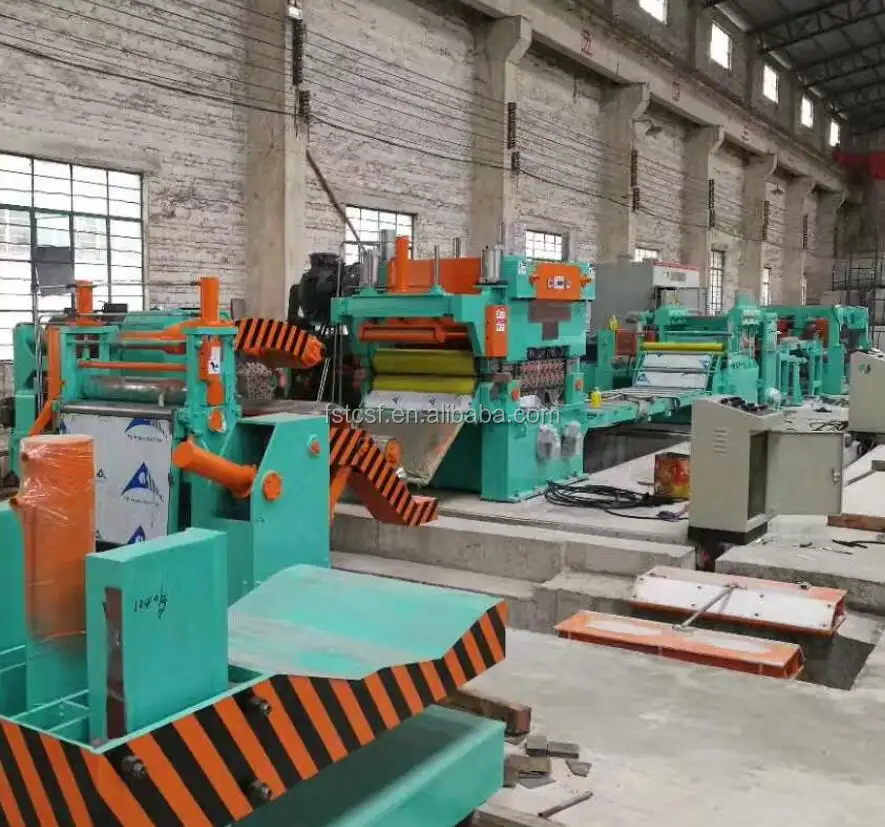

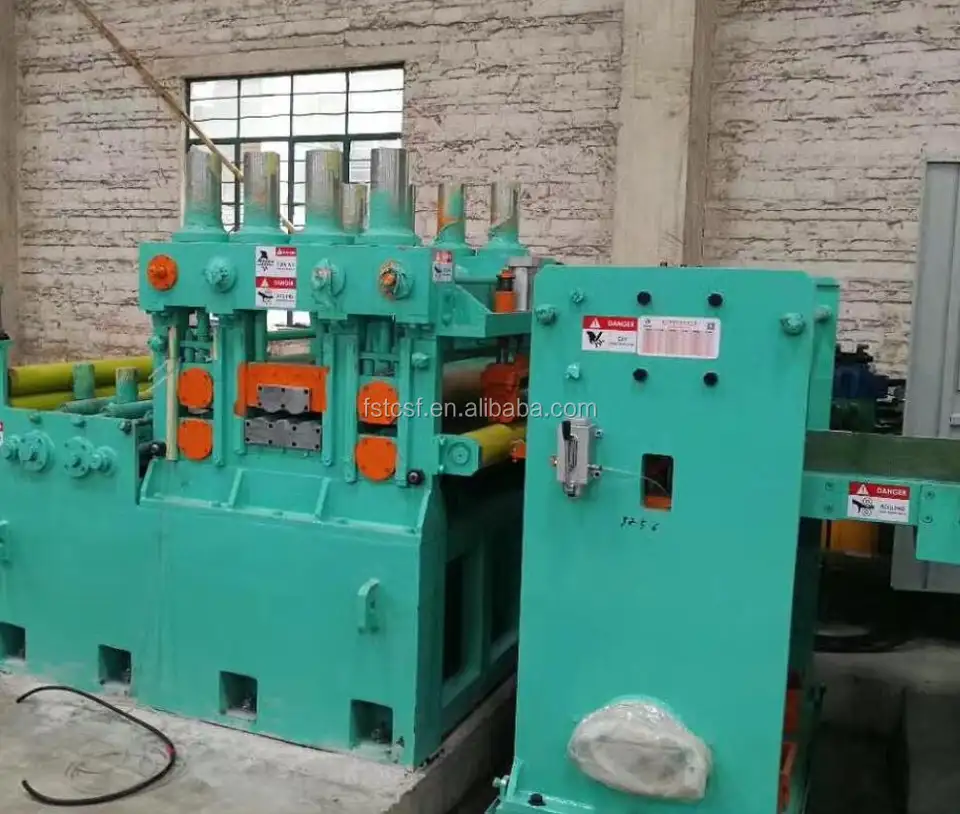

3, Cut to length line picture show:
