Cut To Length Machine with 6hi Leveler 2*1300mm
Product Details
| Model Number | HZP-1300*2-CS-006 |
| Cutting Width(m/min) | 300-4000mm |
| Cutting Speed(m/min) | 5-60 |
| Rated Power | Not fixed |
| Weight | 65ton |
| Coil Width | 300-1250mm |
| Material Thickness(mm) | 0.2-2mm |
| Coil Weight(T) | 15 Tons |
| Leveling Precision(±mm/m) | 0.5 ±mm/m |
| Coil Raw Material | CR, SS, GAL, CARBON, COPPER |
| Dimension(L*W*H) | Not fixed |
Product Description
Cut to Length Line is to transverse cutting of coils into sheets of identical width, but different length in accordance with the PLC program and automatically stack cut sheets on packets. The cut sheets are then used for shearing to necessary dimensions, bending with press-brakes, laser, gas, or plasma cutting to produce flat products.
Cut to Length Line controlled by PLC, setting data in touch screen, working as per setting data. High cutting accuracy! High speed! Stronger structure! Higher quality! Long life!
Raw Material Specification
|
1. Coil width: 300-1600mm |
2. Raw material: SS, Carbon Steel, GI, PPGI, Copper, Aluminium |
3. Coil weight: 8-25 T |
|
4. Coil ID: 508, 610, 762MM |
5. Line speed: 60m/min |
6. Control system: Siemens/ABB |
|
7. Drive: AC or DC |
8. Machine color: blue or green |
9. Monthly output: 800-2000Tons |
Cut to Length Line Devices
|
1. Coil loading car |

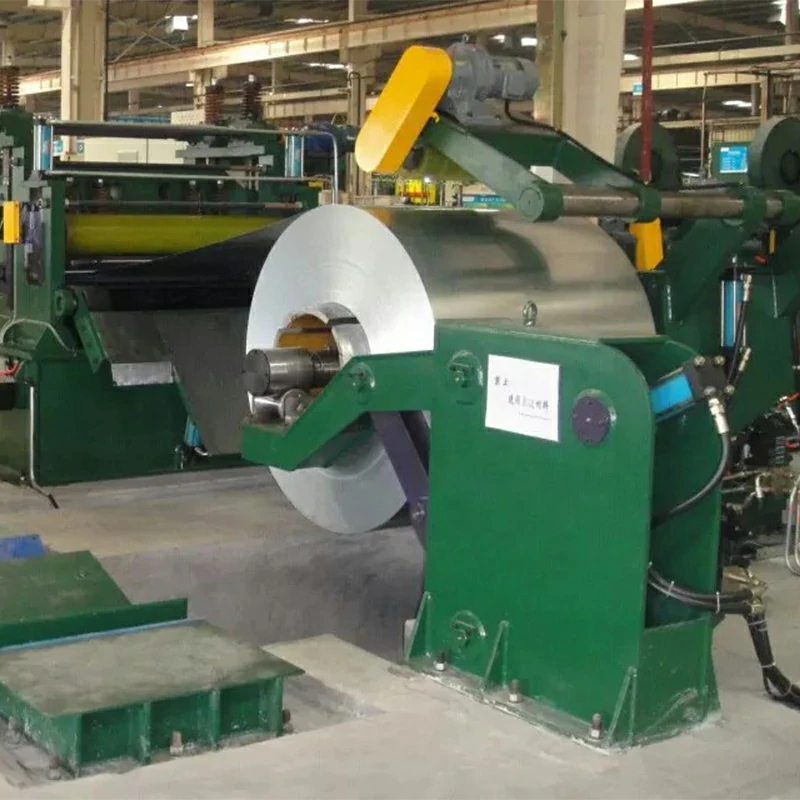

2. Hydraulic decoiler |

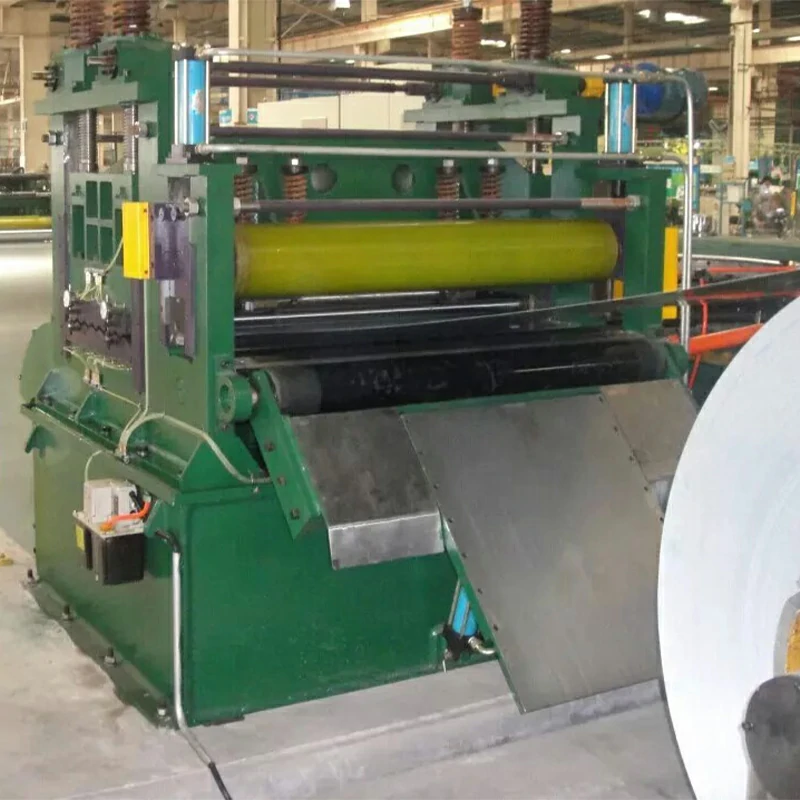

3. Leveler (2hi, 4hi, or 6hi) |
4. Looping pit & bridge |
|
5. Guider & NC length detector |

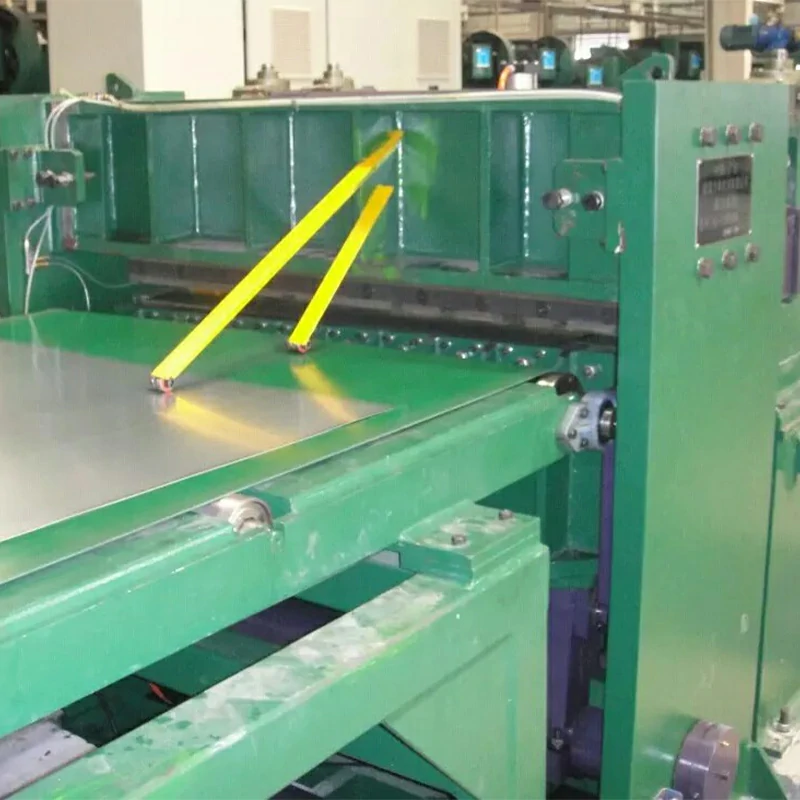

6. Hydraulic shear |
7. Belt conveyor |

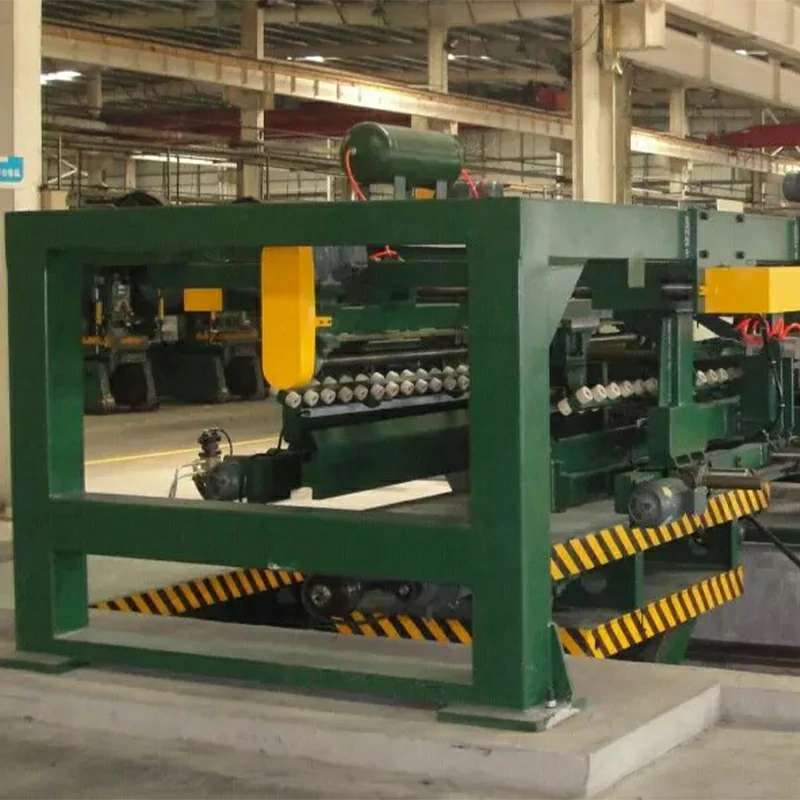

8. Auto stacker |
|
9. Lift table |
10. Roller table |
11. Hydraulic system |
12. Electric control system |

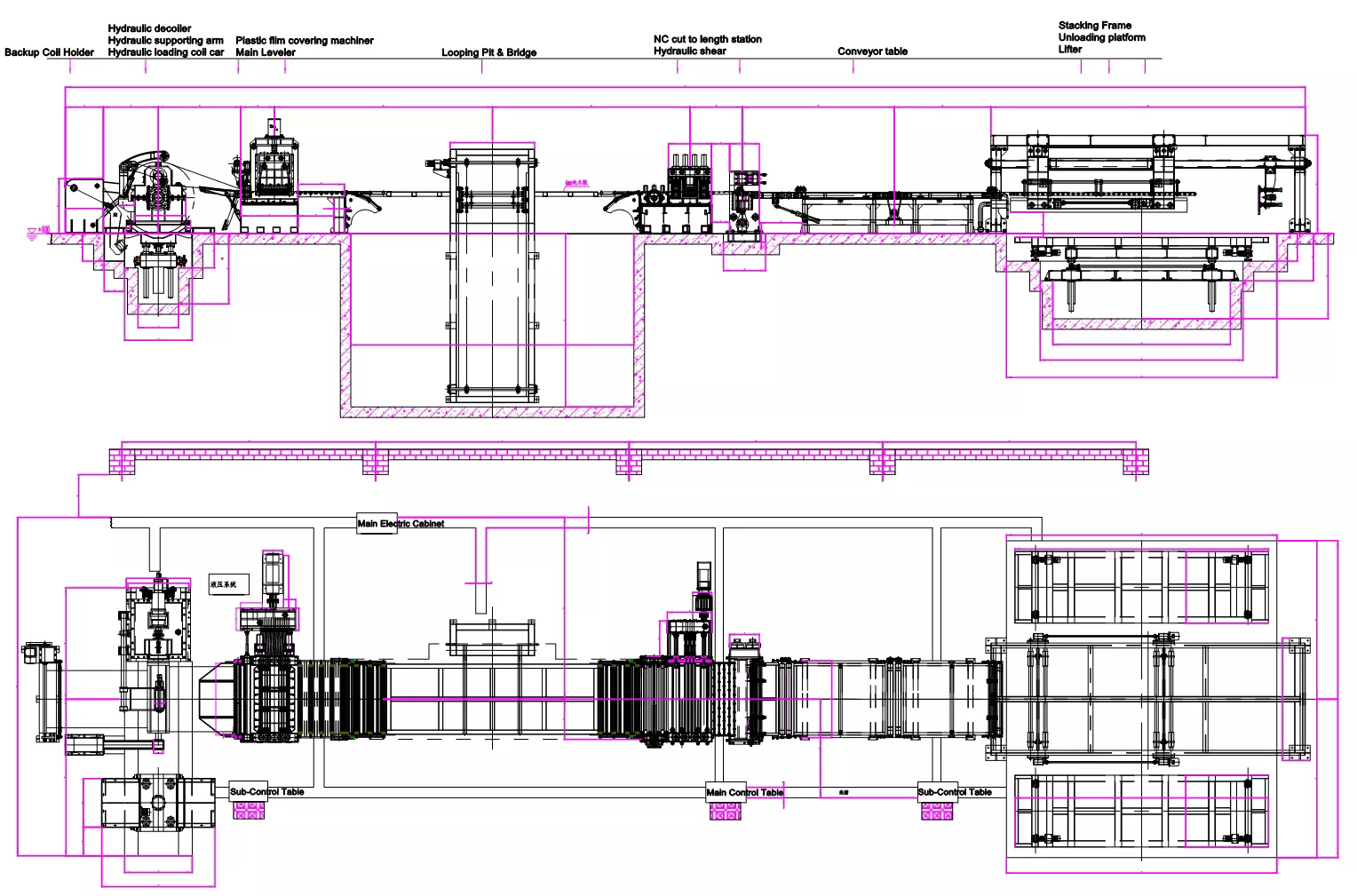

Cut to Length Line Layout
Delivery Time
a) Delivery time is 60-180 working days based on different machines
b) ODM 60-150 days after all info confirmed.
c) Depends on order quantity on hands
d) According to real production situation, appointment time of delivery.
